IOT is the Internet Of Things. Not only are people using the Internet, but appliances and other devices are using the Internet too. Here’s how I put an air conditioner on the Internet.
This project remotely monitors the temperature of an air conditioning outlet vent. The purpose purpose is two-fold. The first is to make sure the room temperature is safe for my cat when I’m away. The second is to identify air conditioner performance problems early on. When the air conditioner is off, the the vent temperature is a few degrees above the room temperature at floor level - where the cat lives when she’s not on top of the book case. When the air conditioner is on, the vent temperature minus the air conditioner set-point is a measure of the air conditioner performance. I found several posts from HVAC technicians who say that the outlet minus the inlet temperature of a properly functioning air conditioner should be 18 to 20 degrees F. I’m using the air conditioner’s thermostat set point as a proxy for the inlet temperature since the thermostat is near the inlet.
All measurements were made with a single DHT-22 temperature/humidity sensor sensor, available from Sparkfun or Adafruit. This sensor has a difficult non-standard one-wire interface, but fortunately Adafruit has a ready-to-go Raspberry Pi library on GitHub. They also have a wiring diagram to interface the DHT-22 to the Pi.
Wire the sensor to the Pi as follows:
Sensor pin PI pin Function
1 1 Power
2 7 Data
4 6 Ground
Connect a 10K ohm resistor between sensor pins 1 and 2.
The pins are numbered from left to right when looking at the front of the sensor with the pins down.
The steps to download and install are as follows:
git clone https://github.com/adafruit/Adafruit_Python_DHT.git
cd Adafruit_Python_DHT
sudo apt-get update
sudo apt-get install build-essential python-dev
sudo python setup.py install
To store this data with a minimum of effort, I took advantage of data.sparkfun.com which is a free service with an easy, well documented interface. The first thing needed to communciate with data.sparkfun.com is pycurl - an python interface to cURL. It's usually installed this way:
sudo pip install pycurl
But the install hit an error:
__main__.ConfigurationError: Could not run curl-config: [Errno 2] No such file or directory
StackOverflow provided an answer. This had to be done first:
sudo apt-get install libcurl4-openssl-dev
Now for the code. Just loop forever, constructing a URL and sending it once every minute:
pi@raspberrypi ~/Adafruit_Python_DHT/examples $ cat ac_vent03.py
#!/usr/bin/python
import time
import Adafruit_DHT
import pycurl
from StringIO import StringIO
sensor = Adafruit_DHT.DHT22
pin = 4
while True:
humidity, temperature = Adafruit_DHT.read_retry(sensor, pin)
temperature = temperature * 9 / 5 + 32
if humidity is not None and temperature is not None:
print 'Temp={0:0.1f}*F Humidity={1:0.1f}%'.format(temperature, humidity)
url = 'https://data.sparkfun.com/input/secret?private_key=anothersecret'
url += '&temp=' + "{:.1f}".format(temperature)
url += '&humidity=' + "{:.1f}".format(humidity)
print url
buffer = StringIO()
c = pycurl.Curl()
c.setopt(c.URL, url)
c.setopt(c.WRITEDATA, buffer)
c.perform()
c.close()
body = buffer.getvalue()
print(body)
else:
print 'Failed to get reading. Try again!'
time.sleep(60)
Next, we want this python app to start when the Pi reboots.
This post in Raspberry Pi Spy was helpful in learning how to assemble a cron job that starts on reboot:
$sudo su
#crontab -e
@reboot sudo python /home/pi/Adafruit_Python_DHT/examples/ac_vent03.py &
To
view the data, data.sparkfun.com has a tabular display, but I’m a nut
for charts. Sparkfun has some nice examples of JavaScript that use the
Google Chart API. Using those examples, I assembled the following HTML file which I saved to my local drive and open with a browser.
<!DOCTYPE html>
<html>
<head>
<!-- EXTERNAL LIBS-->
<script src="https://ajax.googleapis.com/ajax/libs/jquery/1.11.1/jquery.min.js"></script>
<script src="https://www.google.com/jsapi"></script>
<!-- EXAMPLE SCRIPT -->
<script>
// onload callback
function drawChart() {
var public_key = 'secret';
// JSONP request
var jsonData = $.ajax({
url: 'https://data.sparkfun.com/output/' + public_key + '.json',
data: {page: 1},
dataType: 'jsonp',
}).done(function (results) {
var data = new google.visualization.DataTable();
data.addColumn('datetime', 'Time');
data.addColumn('number', 'Humidity');
data.addColumn('number', 'Temperature');
$.each(results, function (i, row) {
data.addRow([
(new Date(row.timestamp)),
parseFloat(row.humidity),
parseFloat(row.temp)
]);
});
var chart = new google.visualization.LineChart($('#chart').get(0));
chart.draw(data, {
title: 'AC Vent','height':1024
});
});
}
// load chart lib
google.load('visualization', '1', {
packages: ['corechart']
});
// call drawChart once google charts is loaded
google.setOnLoadCallback(drawChart);
</script>
</head>
<body>
<div id="chart" style="width: 100%;"></div>
</body>
</html>

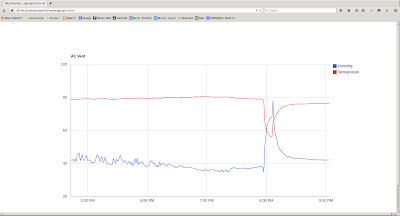

Here's the result. You can see temperature spikes down in an exponential curve when the air conditioner comes on.
This ran great for almost two weeks until it stopped posting data. Without thinking, I power-cycled the Pi. It started posting again, but I had no way to troubleshoot the failure. Did the app crash, did the Wi-Fi driver crash, or did the Pi run out of memory? Rather than having the app run continuously would it be better to have an app that only posts once and is triggered every minute by a cron job? In the next blog post, I'll write about troubleshooting and diagnostics for the internet of air conditioning.
